Key Features

• 2500mAh nominal capacity for balanced energy density
• 30A maximum continuous discharge capability
• High-current lithium-ion chemistry for demanding loads
• Flat top 18650 format for pack integration
• Designed for long cycle life and thermal stability

Overview

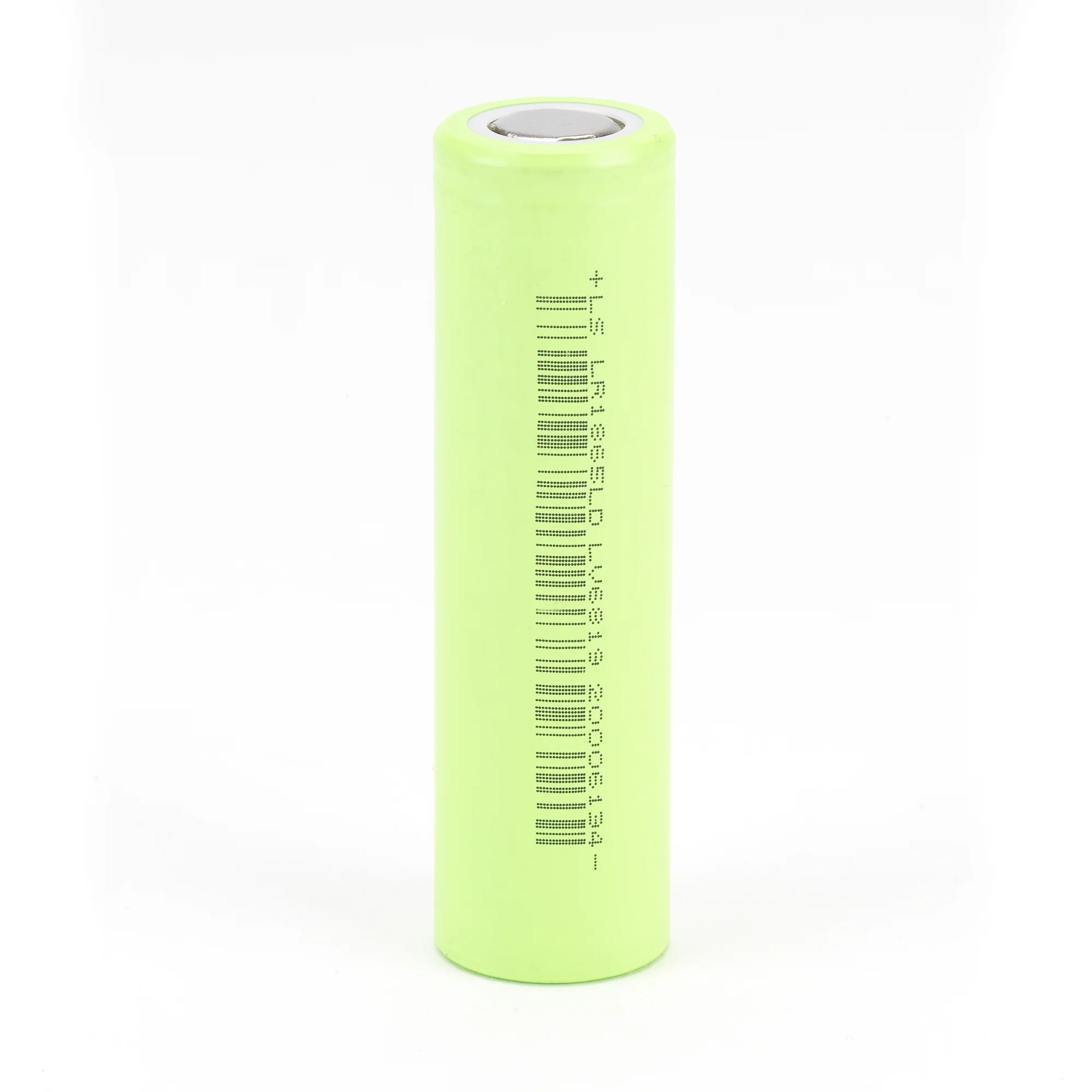

The Lishen LR1865LD is a high-performance 18650 lithium-ion battery engineered for applications requiring sustained high current output. With a nominal capacity of 2500mAh and a powerful 30A continuous discharge rating, this cell delivers reliable energy under demanding electrical loads. Its flat top design makes it well-suited for battery pack assembly and professional power systems.

Applications / Uses

• Battery pack and module assembly
• High-current power tools
• Electric mobility systems
• Energy storage and backup systems
• Industrial and commercial electronics

SPECIFICATIONS

Manufacturer:	Lishen
Model:	LR1865LD
Battery Size:	18650
Positive Terminal:	Flat Top
Nominal Capacity:	2500mAh
Continuous Discharge Rating:	30A Maximum Continuous
Nominal Voltage:	3.6V
Maximum Voltage:	4.2V
Protected:	No, unprotected
Rechargeable:	Yes
Approx. Dimensions:	18.1mm x 65.0mm
Approx. Weight:	43g
Data Specification Sheet:	Lishen LR1865LD Datasheet
