Key Features

• 2600mAh nominal capacity optimized for high-current output
• 20A maximum continuous discharge for demanding applications
• Stable lithium-ion chemistry for consistent power delivery
• Flat top, unprotected design for battery pack integration
• Engineered for durability and dependable cycle life

Overview

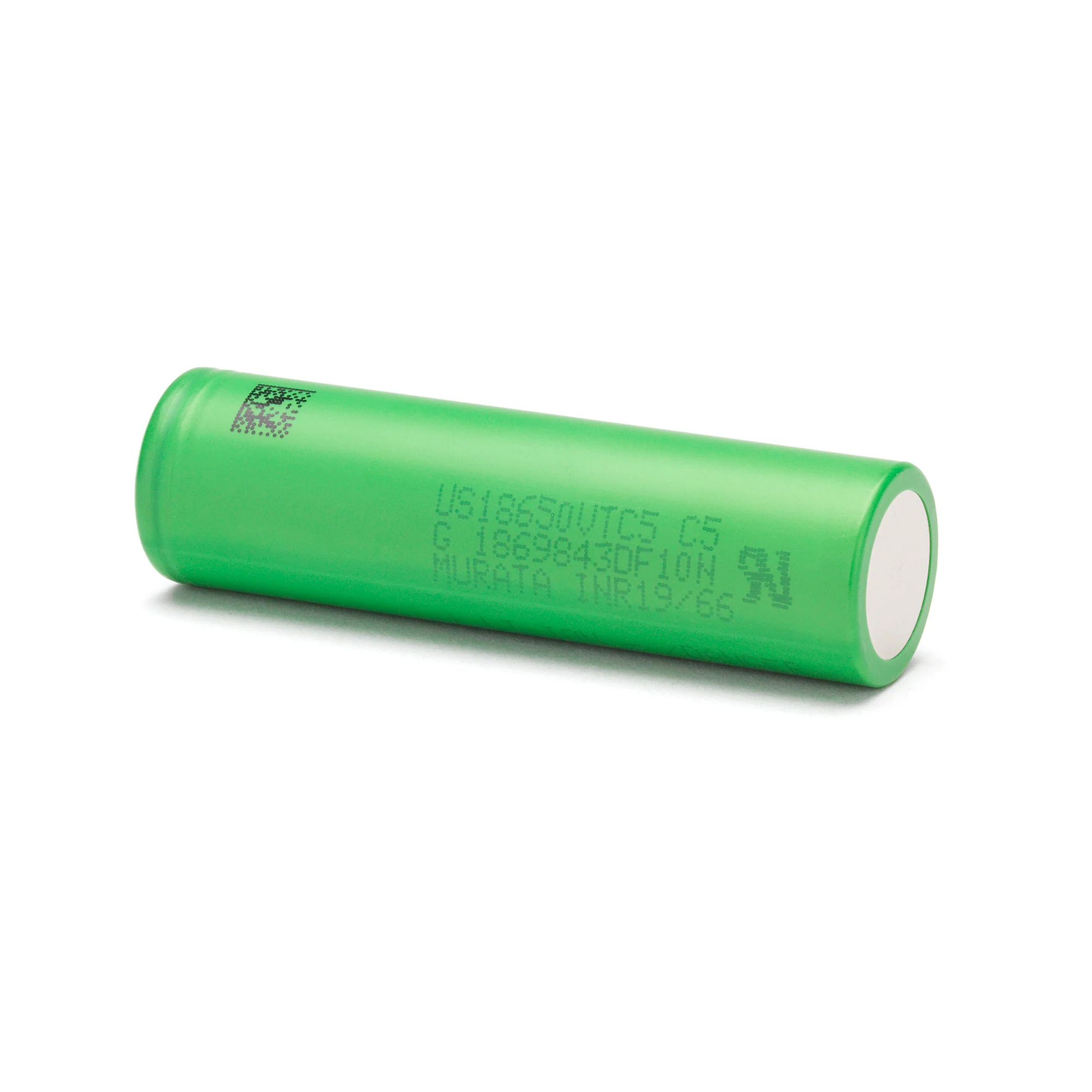

The Sony | Murata VTC5 (US18650VTC5) is a high-performance 18650 lithium-ion battery designed for applications requiring sustained current and reliability. With a 2600mAh capacity and a 20A continuous discharge rating, this cell delivers stable output and efficient energy transfer under demanding electrical loads.

Applications / Uses

• High-current battery pack assemblies
• Power tools and industrial electronics
• Portable power systems
• Energy storage and backup solutions
• High-output electronic projects

SPECIFICATIONS

Manufacturer	Murata
Model	US18650VTC5
Size	18650
Positive Terminal	Flat Top
Nominal Capacity	2600mAh
Continuous Discharge Rating	20A
Nominal Voltage	3.6V
Maximum Voltage	4.2V
Discharge Cut-Off Voltage	2.5V
Protected	No (Unprotected)
Rechargeable	Yes
Approx. Dimensions	18.2mm × 65.0mm
Approx. Weight	44.1g
Data Specification Sheet	Sony | Murata VTC5 Datasheet
