Key Features

• 4100mAh Capacity: High energy storage for extended use.
• 40A Continuous Discharge: Delivers strong, stable high-current output.
• JEITA Charge Control: Improves safety and long-term reliability.
• 21700 Flat Top Cell: Optimized for modern high-power systems.
• Murata Reliability: Proven consistency and performance.

Overview

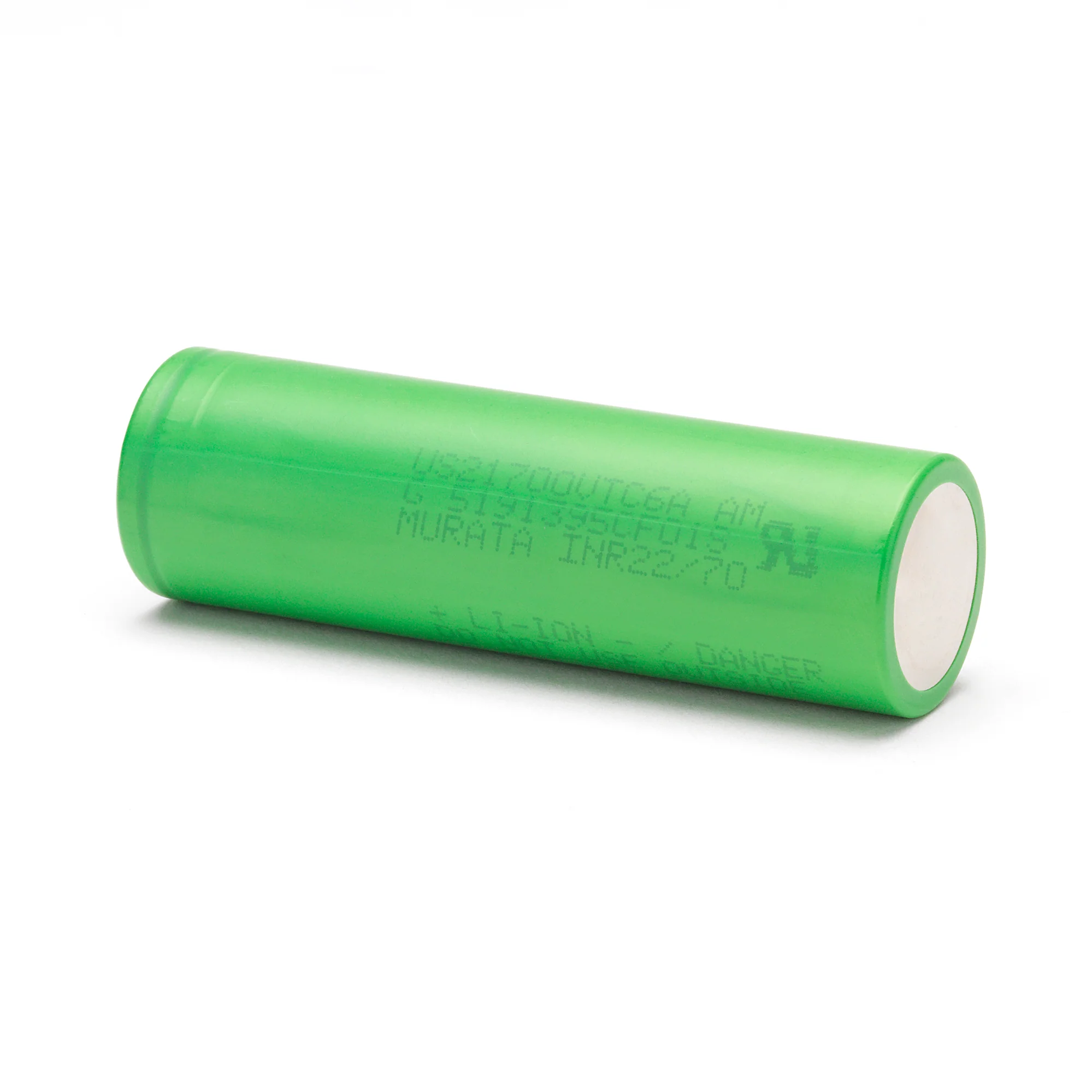

The Sony | Murata VTC6A 21700 battery combines high capacity with exceptional discharge capability. Designed for demanding power applications, it delivers reliable energy, efficient thermal behavior, and consistent performance when used within properly protected systems.

Applications / Uses

• High-output power tools
• Industrial electronic equipment
• Battery pack prototyping and testing
• Portable power systems
• High-current 21700 devices

Specifications

Manufacturer:	Murata
Model:	VTC6A
Size:	21700
Positive Terminal:	Flat Top
Nominal Capacity:	4100mAh
Continuous Discharge Rating (max):	40A
Nominal Voltage:	3.6V
Maximum Voltage:	4.2V
Discharge Cut-off Voltage:	2.5V
Protected:	No
Rechargeable:	Yes
Approx. Dimensions:	21.1mm x 70.0mm
Approx. Weight:	72.9g

Data Specification Sheet

---
